HIGH-SPEED TRAVEL FOR EVERY SWITCH TYPE

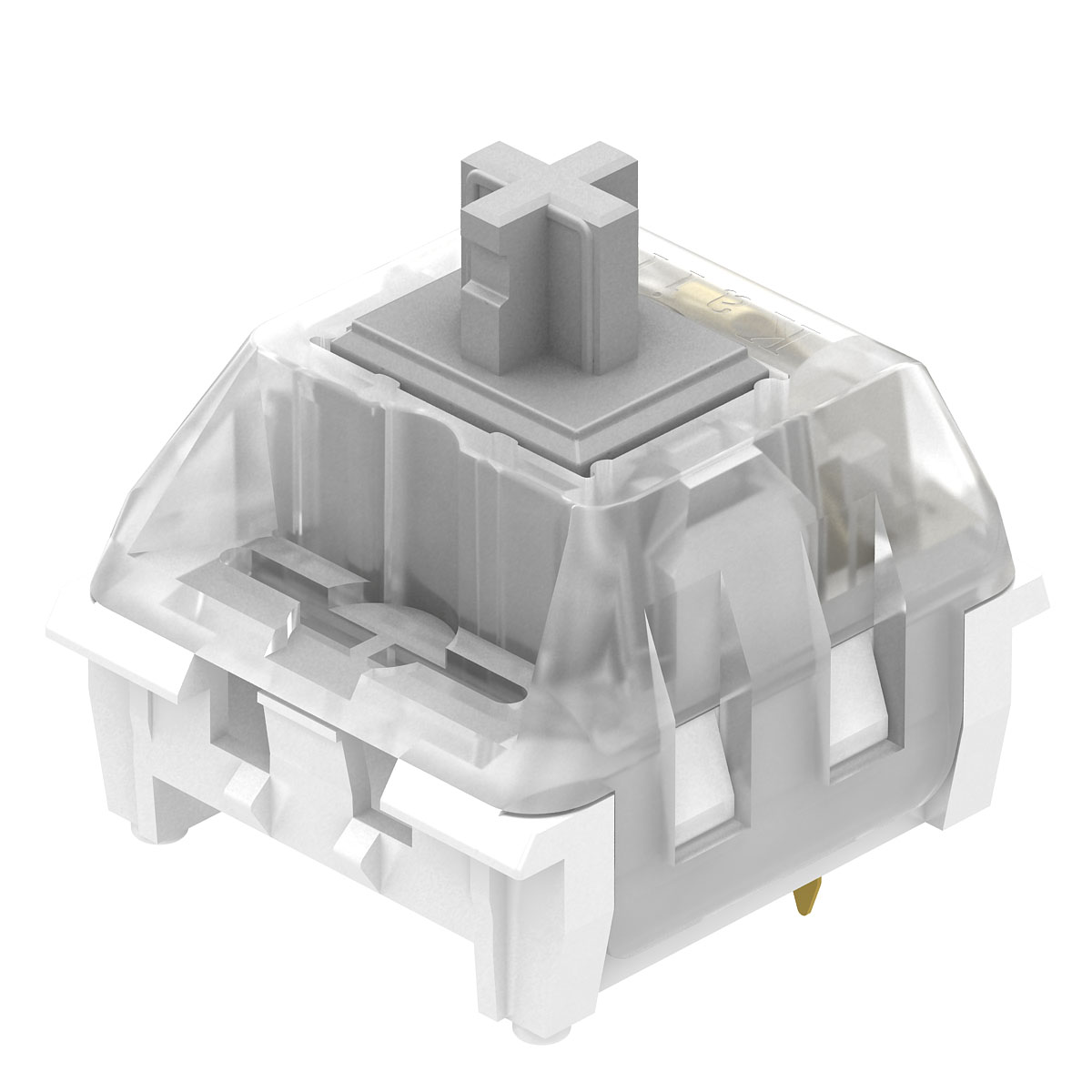

When typing fast is a top priority—but you also have a preferred switch type—Kailh’s Speed has your solution. If you’re a fan of friction-free typing, linear Speed Silver switches offer a smooth, quiet ride from top to bottom. If you like a tactile feel, Speed Coppers offer a satisfying mid-keystroke bump that won’t slow you down. And finally, if clicky is your preferred experience, Speed Golds keep things expedient while delivering a satisfying click with every keystroke. Rated for 70 million actuations, each switch type features a 5-pin PCB mount and Cherry MX compatibility. Outfitted with translucent top housings and white bottom housings, they’re all through-hole- and SMD-LED-compatible, too. Plus, they come in 70-, 90-, or 110-count packs to fit virtually any keyboard.
| Feeling | Linear | |
| Rating | DC12V10mA | |
| Cotact resistance | 100mΩMax | |
| Insulation resistance | 100MΩMinDC500V | |
| withstanding voltage | AC100V(50-60HZ)for1Minute | |
| Tactile force | 40±10gf | |
| Actuation force | 40±10gf | |
| Actuation travel | 1.1±0.3mm | |
| Total travel | 3.5 0/-0.3mm | |
| Electrical life | 70,000,000Cycles | |
| Operating temperature | -20℃- 70℃ | |
| Weather resistance | ||
| low temperature resistance | -20℃±2℃ | 48H |
| heat resisting property | 70℃±2℃ | 48H |
| Moisture resistance | 60℃±2℃90~95%RH | 48H |
